Data sheet
Mini safety valve G 1/8", 30 to 60 bar, Brass
{{ $t('shop.all.artikelnummer') }}:
SVM 18-60

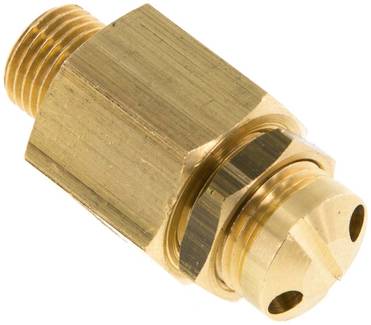

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: brass or 1.4305, spring: 1.4310, seal: FKM
Temperature range:
-10 to +180 °C
Media:
Compressed air and other non-toxic non-inflammable gases, blown-off freely
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | Brass |
| Thread | G 1/8" |
| reaction pressure [bar] | 30 - 60 |
| Blow-off capacity [m³/h] | 90 - 180 |
Further information:
| {{ $t('shop.all.gewicht') }} | 34 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571680596 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84814090 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number SVM 18-60.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 08.12.2025
