Data sheet
Welding nipple R 1/4"-100mm-13,5mm, ST 37, steel black
{{ $t('shop.all.artikelnummer') }}:
RONI 14/100 AS ST

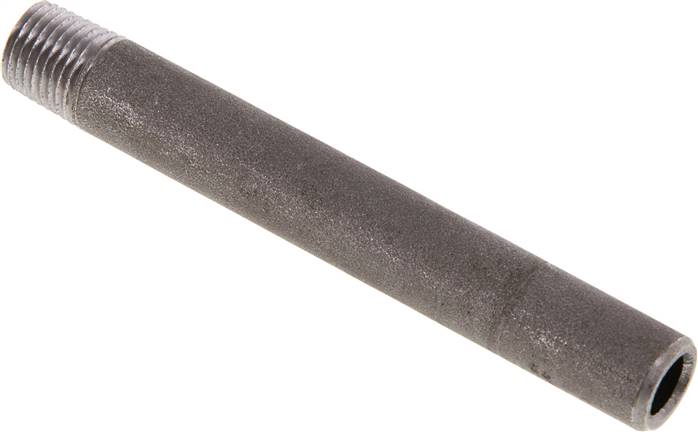

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | ST 37, steel black |
| Welding end diameter [mm] | 13,5 |
| Thread | R 1/4" |
| L [mm] | 100 |
| Operating pressure [bar] | 50 |
Further information:
| {{ $t('shop.all.gewicht') }} | 55 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571600525 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 73079910 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number RONI 14/100 AS ST.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 13.12.2025
