Data sheet
Softy flat nozzle, 30,0, G 3/8", 1.4404
{{ $t('shop.all.artikelnummer') }}:
SOFTY 629 ES

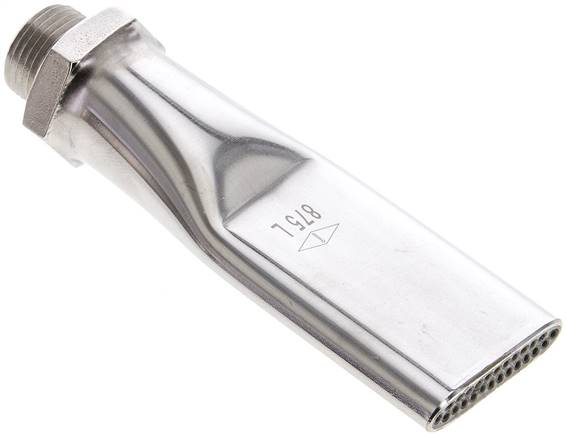

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: galvanised brass or galvanised steel, nozzle insert: Hard PVC
Temperature range:
max. +90 °C
Suitable:
A uniform, laminar air jet with a low noise level characterises these flat nozzles.
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | 1.4404 |
| H [mm] | 7,0 |
| B [mm] | 30,0 |
| L [mm] | 100 |
| Thread external | G 3/8" |
| Adapter for screwing into blowguns with nozzle thread M 12x1.25 | RN M12X1,25-38 MS |
| Air consumption at 4 bar [l/min] | 1166 |
Further information:
| {{ $t('shop.all.gewicht') }} | 105 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571633851 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84679200 |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number SOFTY 629 ES.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
