P-R-S strip incl. hollow screws and seals for valve series M04 / P04
{{ $t('shop.all.artikelnummer') }}:
R 283/12

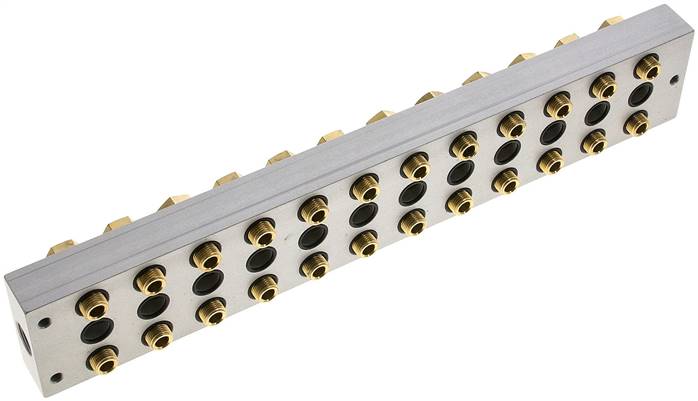

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Version | P-R-S strip incl. hollow screws and seals |
| Number of stations [PCE] | 12 |
| for valve series | 04 |
| matching closure plate for empty station | R 283/V |
| matching spare hollow screws | H 283 |
| A | M 5 |
| B [mm] | 20 |
| C [mm] | 5 |
| E [mm] | 6 |
| F [mm] | 25 |
| G | G 1/8" |
| H [mm] | 22,20 |
| I [mm] | 6 |
| J [mm] | 32 |
| K [mm] | 50 |
| L | G 1/4" |
| M [mm] | 32 |
| SW [mm] | 14 |
Further information:
| {{ $t('shop.all.gewicht') }} | 850 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571567859 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84812090 |
| {{ $t('shop.all.hersteller') }} | Airtec (WEEE DE94696834 ) |
Figure
Drawing:
Drawing: P-R-S manifold for 5/2- & 5/3-way valves, type R 283
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number R 283/12.
