Data sheet

Brass barrel tap G 3/4", self-closing
{{ $t('shop.all.artikelnummer') }}:
KHFA 34 MS

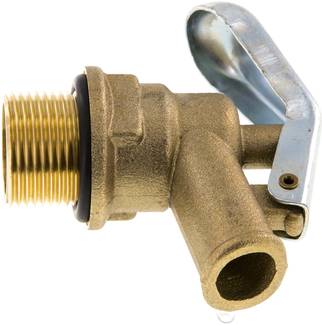

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: brass, seal: NBR
Temperature range:
0 to +75 °C
Media:
Petrochemical liquids
{{ $t('shop.display.artikel.eigenschaften_headline') }}
G G 3/4"
DN [mm] 10
Outlet inner diameter [mm] 15
Further information:
{{ $t('shop.all.gewicht') }} 210 g / pcs
{{ $t('shop.all.gtin') }} 4050571422769
{{ $t('shop.display.artikel.zollwarennummer') }} 74122000
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number KHFA 34 MS.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 08.12.2025
