Data sheet
3/2-way solenoid valve, G 1/8", closed (NC), 6-way, 230 V AC
{{ $t('shop.all.artikelnummer') }}:
MS 18310/6HN230V

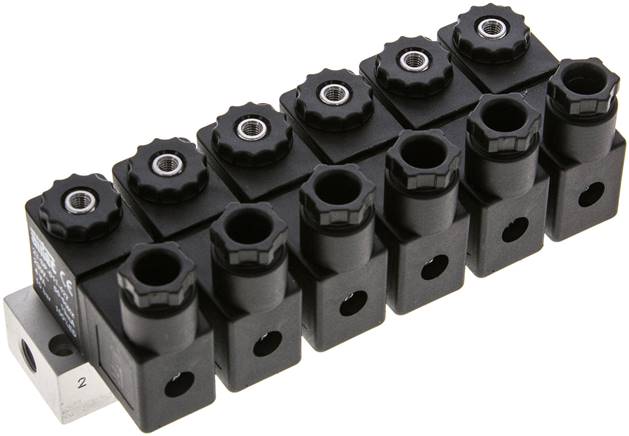

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: anodized aluminium and plastic, internal parts: stainless steel and brass, seal: plastic / NBR
Temperature range:
-10 to +70 °C
Media:
oiled and unoiled filtered compressed air
Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages
Voltage tolerance:
± 10 %
Protection class:
IP 65
Information:
These valves are always supplied with a solenoid coil and a connector plug.
Structural shape solenoid coil:
N (plug size 1) (M 5: O, plug size 0)
Pressure input:
both sides on row plate (G 1/8")
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Number of valves [PCE] | 6 |
| Control voltage | 230 V AC |
| Thread | G 1/8" |
| Thread exhaust air | 6x M 5 |
| Manual emergency stop | yes |
| Nominal width [mm] | 1,4 |
| flow [l/min] | 56 |
| Power consumption (AC) [VA] | 4 |
| Spare solenoid coil | MAG N 230V |
Further information:
| {{ $t('shop.all.gewicht') }} | 800 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571499075 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84812090 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
| {{ $t('shop.all.hersteller') }} | Airtec (WEEE DE94696834 ) |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number MS 18310/6HN230V.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
