Data sheet

Hose nipple,60° sealing cone,7 to 8mm f. M 14x1,5 -G 1/4"
{{ $t('shop.all.artikelnummer') }}:
810 0600

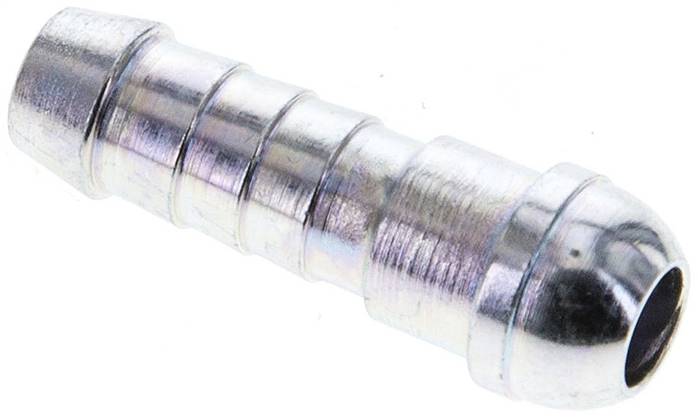

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Zinc plated steel
{{ $t('shop.display.artikel.eigenschaften_headline') }}
DN [mm] 6
Hose diameter (inner) [mm] 7 - 8
for metric threads M 14x1,5
for imperial threads G 1/4"
Collar diameter behind sealing cone [mm] 9,5
Suitable union nut (metric) 831 0600
Suitable union nut (imperial) 834 0600
Further information:
{{ $t('shop.all.gewicht') }} 8,9 g / pcs
{{ $t('shop.all.gtin') }} 4050571209889
{{ $t('shop.display.artikel.zollwarennummer') }} 73182900
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number 810 0600.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 08.12.2025
