Data sheet

5/3-way hand lever valve, G 1/8", Centre position vented, detend
{{ $t('shop.all.artikelnummer') }}:
XMV 1420

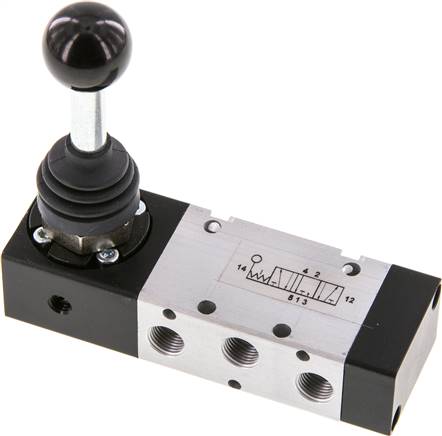

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body and slider: aluminium, seals: NBR
Temperature range:
-15 to +60 °C
Operating pressure:
-0,95 to 10 bar
Media:
lubricated and unlubricated, filtered compressed air, vacuum
Pressure input:
Possible on every connection
{{ $t('shop.display.artikel.eigenschaften_headline') }}
function Centre position vented, detend
Thread G (3x) G 1/8"
Thread exhaust air G (2x) G 1/8"
Nominal width [mm] 5
flow [l/min] 550
A [mm] 12
B [mm] 49,5
C [mm] 34,0
D [mm] 32
E [mm] 23,3
F1 [mm] 18
F2 [mm] 34
H [mm] 5,5
K1 [mm] 32
K2 [mm] 17,2
L [mm] 86,5
M [mm] 22
N [mm] 14,0
O [mm] 10,0
P [mm] 18
Further information:
{{ $t('shop.all.gewicht') }} 210 g / pcs
{{ $t('shop.all.gtin') }} 4050571802585
{{ $t('shop.display.artikel.zollwarennummer') }} 84814090
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
Figure
Drawing:
Drawing: 5/3-way hand lever valve
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number XMV 1420.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 13.12.2025
