Data sheet
FISCHER threaded rod, M 12 x 160, Stainless steel A4
{{ $t('shop.all.artikelnummer') }}:
FI FISA M12X160ES

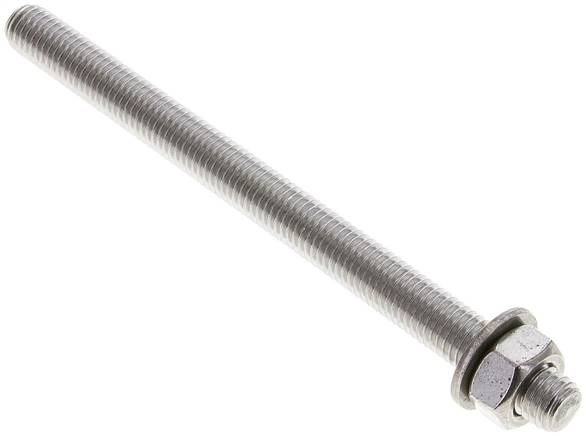

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Application:
The cut-to-length threaded rods are used in conjunction with injection mortar and, if necessary, anchor sleeves to mount supports, rails, shelves, brackets, railings, scaffolding or façades. This threaded rod has a building authority approval in conjunction with injection mortar FIS .... Can be used in cracked and non-cracked concrete, masonry (use anchor sleeves if necessary) and aerated concrete.
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | Stainless steel A4 |
| Thread d | M 12 |
| Length L [mm] | 160 |
| Bore diameter* [mm] | 14 |
| Min. depth of anchoring* [mm] | 70 |
| Max. usable length* [mm] | 74 |
Further information:
| {{ $t('shop.all.gewicht') }} | 135 g / pcs |
| {{ $t('shop.all.gtin') }} | 4006209904510 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 73181535 |
| {{ $t('shop.all.hersteller') }} | Fischer |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number FI FISA M12X160ES.
