Data sheet
Block-one-way flow control, G 1/4", precision version
{{ $t('shop.all.artikelnummer') }}:
DR 14

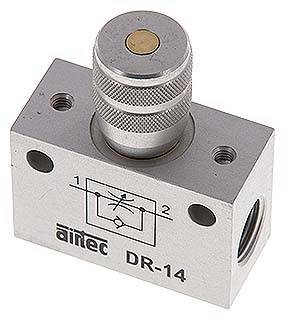

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: Anodised aluminium, brass, seals: NBR (G 1": Body aluminium painted, galvanised steel, seals: NBR)
Operating pressure:
0,5 to 10 bar
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Thread | G 1/4" |
| Fastening threads top | M 4 |
| Flow regulated [l/min] | 50 - 600 |
| Flow regulated [l/min] | 1300 |
| Temperature range [°C] | -10 to +70 |
Further information:
| {{ $t('shop.all.gewicht') }} | 95 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571265274 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84812090 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
| {{ $t('shop.all.hersteller') }} | Airtec (WEEE DE94696834 ) |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number DR 14.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 13.12.2025
