DHPS-10-A-NC (1254042) Parallel gripper
{{ $t('shop.all.artikelnummer') }}:
OT-FESTO032821

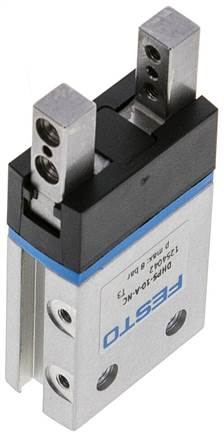

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| size | 10 |
| Stroke per gripper jaw [mm] | 3,0 |
| Max. exchange precision [mm] | <= 0,2 mm |
| Max. angular gripper jaw backlash ax, ay [deg] | < 0,5 deg |
| Max. gripper jaw play Sz [mm] | < 0,02 mm |
| Rotational symmetry [mm] | <= 0,2 mm |
| Repeatability grippers [mm] | < 0,02 mm |
| Quantity Gripper jaws | 2 |
| installation position | arbitrary |
| Principle of operation | double acting |
| Gripper function | Parallel |
| Construction set up |
lever, Force controlled movement cycle |
| Guide | sliding guide |
| Position detection | For proximity switch |
| Operating pressure [bar] | 4 to 8 |
| Max. working frequency gripper [Hz] | 4 |
| Min. opening time a 6 bar [ms] | 58 |
| Min. closing time at 6 bar [ms] | 24 |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Min. opening time at 0.6 MPa (6 bar, 87 psi) | Oiled operation possible (required in further operations) |
| Min. closing time at 0.6 MPa (6 bar, 87 psi) | 1 - low corrosion stress |
| ambient temperature [°C] | 5 to 60 |
| Mass inertia [kg/cm²] | 0,081 |
| LABS (PWIS) conformity [N] | 60 |
| Suitability for the production of Li-ion batteries [Nm] | 3,0 |
| Max. torque on gripper jaws My static [Nm] | 3,0 |
| Total gripping force, opening, 0.6MPa (6bar, 87 psi) [Nm] | 3,0 |
| Total gripping force, closing, 0.6MPa (6bar, 87 psi) [Mio SP] | 10 |
| Gripper force per gripper jaw, opening, 0.6 MPa (6 bar, 87 psi) [g] | 60 |
| Fastening type |
Selectively:, Female thread and centring sleeve, With Throughway bore and centring sleeve |
| Pneumatic connection | M3 |
| Material information | RoHs compliant |
| Cover cap material | PA |
| Housing material |
Aluminium wrought alloy, Hard anodised |
| Gripper jaws material | High-alloyed stainless steels |
| Gripping force safety | When closing |
Further information:
| {{ $t('shop.all.gewicht') }} | 120 g / pcs |
| {{ $t('shop.all.gtin') }} | 4052568229160 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84798997 |
| {{ $t('shop.all.hersteller') }} | Festo |
Figure
