Data sheet
ISO15552 loop strap swivel fastening (spher) 100mm Burnished steel
{{ $t('shop.all.artikelnummer') }}:
TE 100

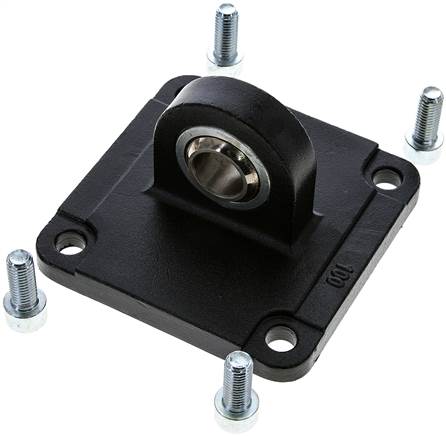

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Scope of delivery:
1 pc swivel fixation, incl. 4 fastening screws
Warning:
Only use FFQ bolts to connect to TQ types!
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | Burnished steel |
| for piston diameter [mm] | 100 |
| A [mm] | 25 |
| B [mm] | 18,0 |
| D [mm] | 20 |
| F [mm] | 41 |
| L [mm] | 230 |
| M [mm] | 115 |
| N [mm] | 89,0 |
Further information:
| {{ $t('shop.all.gewicht') }} | 1,6 kg / pcs |
| {{ $t('shop.all.gtin') }} | 4050571691141 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84129080 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
| {{ $t('shop.all.hersteller') }} | Airtec (WEEE DE94696834 ) |
Figure
Drawing:
Drawing: Swivel mounting spherical tab
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number TE 100.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 13.12.2025
