Compact cylinders, double acting, piston 40 mm, stroke 70 mm
{{ $t('shop.all.artikelnummer') }}:
SQ 40/70 SZ

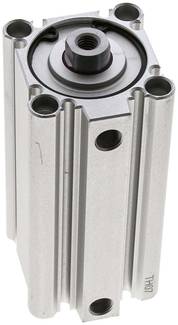

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: anodized aluminium, piston rod: hard chromium plated steel, seal: NBR
Temperature range:
-10 to +60 °C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
D
Advantages:
•outstanding value,
•cylinder switches can be mounted on different sides,
•main mounting dimensions identical to SMC Series CQ2A (CQ2)
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Piston diameter [mm] 40
Stroke [mm] 70
H (piston rod thread) M 8
G (compressed air port) G 1/8"
Repair sets SQN 40 REP
A [mm] 46,5
B [mm] 39,5
C [mm] 13
D [mm] 16
E [mm] 52
F [mm] 8,0
J [mm] 5,0
K [mm] 14
L [mm] 7,0
M [mm] 40
N [mm] 5,5
O [mm] 9 (5,5 deep)
P M 6
P1 [mm] 17,0
Q [mm] 11,0
Further information:
{{ $t('shop.all.gewicht') }} 600 g / pcs
{{ $t('shop.all.gtin') }} 4050571639136
{{ $t('shop.display.artikel.zollwarennummer') }} 84123100
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
{{ $t('shop.all.hersteller') }} EMC
Figure
Drawing:
Drawing: Compact cylinder
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number SQ 40/70 SZ.
