Data sheet
SMT-8M-A-PO-24V-E-7,5-OE (574340) Proximity sensor
{{ $t('shop.all.artikelnummer') }}:
OT-FESTO032933

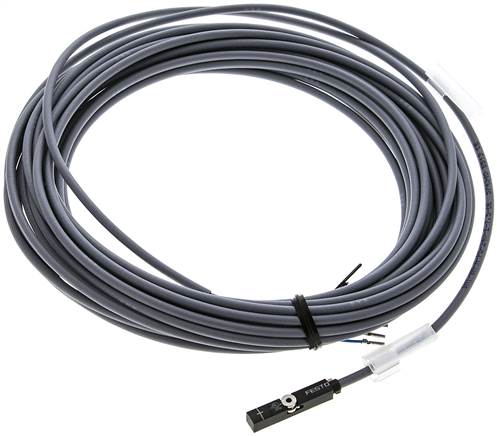

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Design | For T-slot |
| Based on standard | EN 60947-5-2 |
| Permission |
RCM mark, c UL us - Listed (OL) |
| CE certificate (see declaration of conformity) |
acc. to EU-EMV Directive, acc. to EU-RoHS Directive |
| KC-mark | KC-EMV |
| UKCA marking (see declaration of conformity) | Oil resistant |
| Material information |
halogen free, Copper and PTFE-free, RoHs compliant |
| Measured parameter | Position |
| Material information | Magnetoresistive |
| ambient temperature [°C] | -40 to 85 |
| Repeatability [mm] | 0,2 |
| Control output | PNP |
| Switching element function | NC contact |
| Switch on time [ms] | <= 1,3 ms |
| Switch off time [ms] | <= 1,4 ms |
| Max. switching frequency [Hz] | 180 |
| Max. output current [mA] | 100 |
| Max. output current in fastening sets [mA] | 100 |
| Max. switching capacity DC [W] | 2,8 |
| Max. switching capacity DC in fastening sets [W] | 2,8 |
| Voltage drop [V] | < 1,5 V |
| Short circuit resistance | yes |
| Overload resistant | Available |
| Rated operating voltage DC [V] | 24 |
| Operating voltage range DC [V] | 5 to 30 |
| Reverse polarity protection | for all electrical connections |
| Electrical connection 1, connection type | cable |
| Electrical connection 1, connection technology | Open end |
| Electrical connection 1, number of pins / wires | 3 |
| Connection outlet direction | along |
| Test conditions line |
Bending radius strength to Festo standard, Cable track: 5 million cycles, bending radius 28 mm, Test conditions on request, Torsional strength > 300,000 cycles, ±270°/0.1 m |
| Cable length [MTR] | 7,5 |
| Electrical connection 1, compatible type of mounting | Cable track+robot |
| Electrical connection 1, connection pattern | Grey |
| Cable sleeve material | TPE-U(PUR) |
| Fastening type |
Insertable from above into the slot, Permanently screwed |
| Max. tightening torque [Nm] | 0,6 |
| installation position | arbitrary |
| Housing colour | black |
| Housing material |
High-alloyed stainless steels, PA reinforced |
| Switching status indicator | LED yellow |
| Functional reserve display | LED orange |
| Ambient temperature for moving cable placements [°C] | -20 to 85 |
| Protection category |
IP65, IP68, IP69K |
Further information:
| {{ $t('shop.all.gewicht') }} | 90 g / pcs |
| {{ $t('shop.all.gtin') }} | 4052568103156 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 85365019 |
| {{ $t('shop.all.hersteller') }} | Festo |
Figure
