DSBC-50-100-PPSA-N3 (1376307) ISO cylinder
{{ $t('shop.all.artikelnummer') }}:
OT-FESTO033154

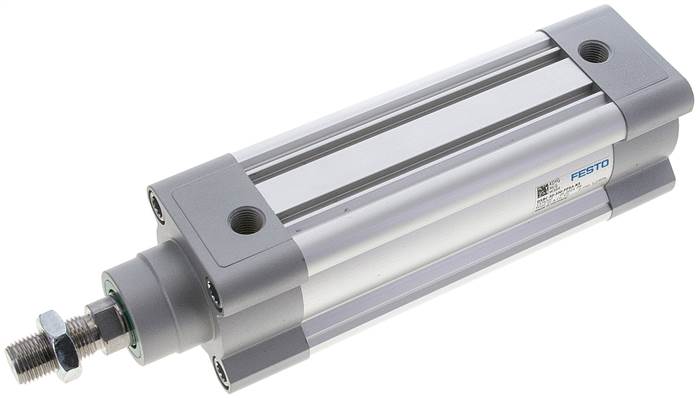

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Stroke [mm] | 100 |
| Piston diameter | 50 mm |
| Piston rod thread | M16x1,5 |
| Dampening | PPS: Self-setting pneumatic end position dampening |
| installation position | arbitrary |
| Complies to standard | ISO 15552 |
| Piston rod end | Male thread |
| Construction set up |
Piston, piston rod, profile tube |
| Position detection | For proximity switch |
| Variants | One-sided piston rod |
| Operating pressure [bar] | 0.4 to 12 |
| Principle of operation | double acting |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Information about operating and control medium | Oiled operation possible (required in further operations) |
| Corrosion resistant class KBK | 2 - moderate corrosion stress |
| Information about operating and control medium [°C] | -20 to 80 |
| Impact energy at the end positions [J] | 1,0 |
| LABS (PWIS) conformity [mm] | 22 |
| Theoretical force at 6 bar, Return flow [N] | 990 |
| Theoretical force at 6 bar, flow [N] | 1.178 |
| Moving mass at 0 mm stroke [g] | 365 |
| Weight supplement per 10 mm stroke [g] | 56 |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke [g] | 1.190 |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke [g] | 25 |
| Fastening type |
With female thread, With Accessories, Selectively: |
| Pneumatic connection | G1/4 |
| Material information | RoHs compliant |
| Cover material | Alu-Druckguss, beschichtet |
| Material piston seal | TPE-U(PU) |
| Piston material | Aluminium wrought alloy |
| Piston rod material | High-alloyed steel |
| Material piston rod wiper | TPE-U(PU) |
| Material information | TPE-U(PU) |
| Material of cushioning boss | POM |
| Material piston seal | Aluminium-Knetlegierung, gleiteloxiert |
| Nut material | Zinc plated steel |
| Bearing material | POM |
| Material piston rod wiper | Zinc plated steel |
Further information:
| {{ $t('shop.all.gewicht') }} | 1,8 kg / pcs |
| {{ $t('shop.all.gtin') }} | 4052568016548 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84123100 |
| {{ $t('shop.all.hersteller') }} | Festo |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number OT-FESTO033154.
