Data sheet
FISCHER dowel, UX 5x30 with rim, 100 pack
{{ $t('shop.all.artikelnummer') }}:
DUBEL UX5X30 R

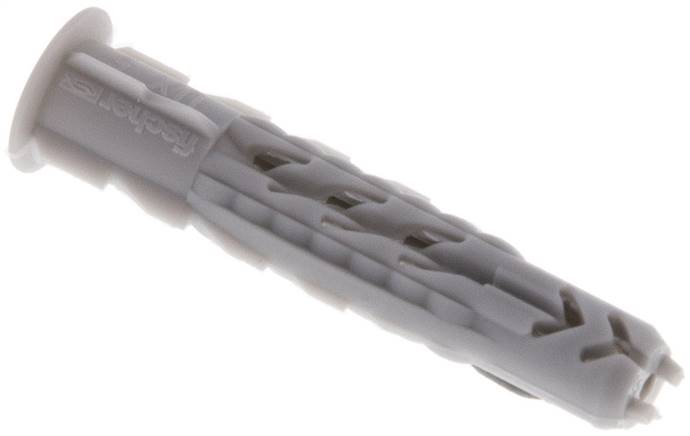

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Application:
Concrete and solid brick wall materials, honeycomb brick, aerated concrete, plaster, particle boards, etc. For wall assembly, the dowel must be placed flush in the carrying underground; for manifold assembly, please observe minimum board thickness.
Screws that can be used:
Wood or chipboard screws
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Version | with rim |
| Bore diameter [mm] | 5 |
| Min. hole depth [mm] | 40 |
| Dowel length [mm] | 30 |
| min. board thickness [mm] | 9,5 |
| Screw diameter [mm] | 3 - 4 |
| Amount | 100 pack |
Further information:
| {{ $t('shop.all.gewicht') }} | 65 g / pcs |
| {{ $t('shop.all.gtin') }} | 4006209947227 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 39269097 |
| {{ $t('shop.all.hersteller') }} | Fischer |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number DUBEL UX5X30 R.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 08.12.2025
