Data sheet

DGSC-6-10-P-P (569792) Mini slide
{{ $t('shop.all.artikelnummer') }}:
OT-FESTO033856

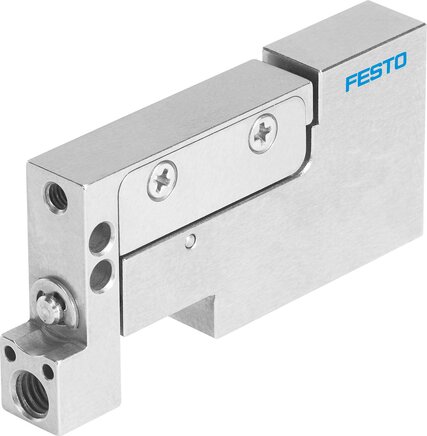

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Stroke [mm] 10
Piston diameter 6 mm
Operating mode, drive unit Joch
Dampening P: Elastic silencer rings / plates double-sided
installation position arbitrary
Guide Ball cage guide
Construction set up Joch kinematics
Position detection without
Operating pressure [bar] 1 to 6
Repeatability 0,2 mm
Principle of operation double acting
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Corrosion resistant class KBK 2 - moderate corrosion stress
ambient temperature [°C] 10 to 50
Information about operating and control medium [N] 20
Max. force Fz [N] 20
LABS (PWIS) conformity [Nm] 0,3
Max. torque My [Nm] 0,4
Max. torque Mz [Nm] 0,4
Theoretical force at 6 bar, Return flow [N] 12,7
Theoretical force at 6 bar, flow [N] 17
Moving mass [g] 17
Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke With Female thread and dowel pin
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke M3
Material information Copper and PTFE-free,
RoHs compliant
Seals material NBR
Housing material High-alloyed stainless steels
Piston rod material High-alloyed stainless steels
Further information:
{{ $t('shop.all.gewicht') }} 70 g / pcs
{{ $t('shop.all.gtin') }} 4052568216443
{{ $t('shop.display.artikel.zollwarennummer') }} 84123100
{{ $t('shop.all.hersteller') }} Festo
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number OT-FESTO033856.
