Data sheet
DSNU-16-60-P-A (1908263) ISO cylinder
{{ $t('shop.all.artikelnummer') }}:
OT-FESTO034080

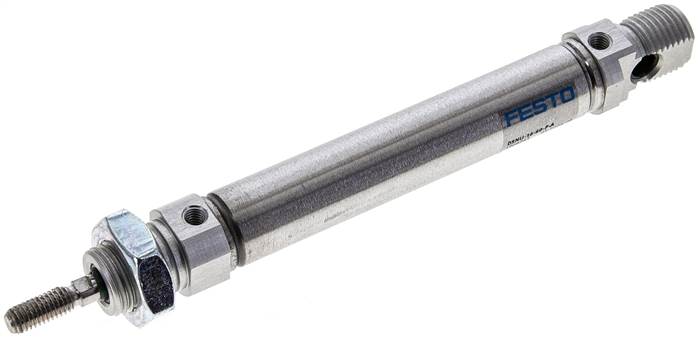

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Stroke [mm] | 60 |
| Piston diameter | 16 mm |
| Piston rod thread | M6 |
| Dampening | P: Elastic silencer rings / plates double-sided |
| installation position | arbitrary |
| Complies to standard |
CETOP RP 52 P, ISO 6432 |
| Piston rod end | Male thread |
| Construction set up |
Piston, piston rod, cylinder tube |
| Position detection | For proximity switch |
| Variants | One-sided piston rod |
| Operating pressure [bar] | 1 to 10 |
| Principle of operation | double acting |
| Maritime classification | see Certificate |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Information about operating and control medium | Oiled operation possible (required in further operations) |
| Information about operating and control medium | 2 - moderate corrosion stress |
| ambient temperature [°C] | -20 to 80 |
| LABS (PWIS) conformity [J] | 0,15 |
| Theoretical force at 6 bar, Return flow [N] | 103,7 |
| Base weight at 0 mm stroke [g] | 89,9 |
| Supplement moved mass per 10 mm stroke [g] | 2 |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke | With Accessories |
| Pneumatic connection | M5 |
| Material information | RoHs compliant |
| Cover material |
Aluminium wrought alloy, No-colour anodised |
| Seals material |
NBR, TPE-U(PU) |
| Material information | High-alloyed stainless steels |
| Cylinder tube material | High-alloyed stainless steels |
| Theoretical force at 6 bar, flow [N] | 120,6 |
| Moving mass at 0 mm stroke [g] | 23,0 |
| Weight supplement per 10 mm stroke [g] | 4,6 |
Further information:
| {{ $t('shop.all.gewicht') }} | 115 g / pcs |
| {{ $t('shop.all.gtin') }} | 4052568108441 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84123100 |
| {{ $t('shop.all.hersteller') }} | Festo |
Figure
