Data sheet
EAMM-U-60-D32-57A-91 (1210419) Parallel kit
{{ $t('shop.all.artikelnummer') }}:
OT-FESTO034542

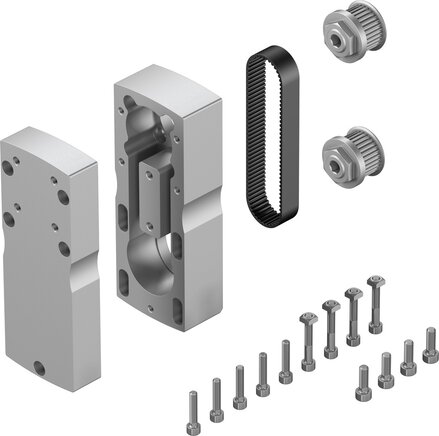

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| installation position | arbitrary |
| Bearing temperature [°C] | -25 to 60 |
| Relative humidity | 0 - 95 % |
| LABS (PWIS) conformity | IP40 |
| ambient temperature [°C] | -10 to 60 |
| Transferable torque [Nm] | 3,00 |
| Material information | RoHs compliant |
| size | 60 |
| Gear ratio | 1:1 |
| Max. speed [1/min] | 6.000 |
| Material information [kg/mm²] | 26,700 |
| Empty run actuator torque [Nm] | 0,070 |
Further information:
| {{ $t('shop.all.gewicht') }} | 1,3 kg / pcs |
| {{ $t('shop.all.gtin') }} | 4052568228644 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84839089 |
| {{ $t('shop.all.hersteller') }} | Festo |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number OT-FESTO034542.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 08.12.2025
