Data sheet
EMMS-ST-87-S-SE-G2 (1370483) Stepper motor
{{ $t('shop.all.artikelnummer') }}:
OT-FESTO034697

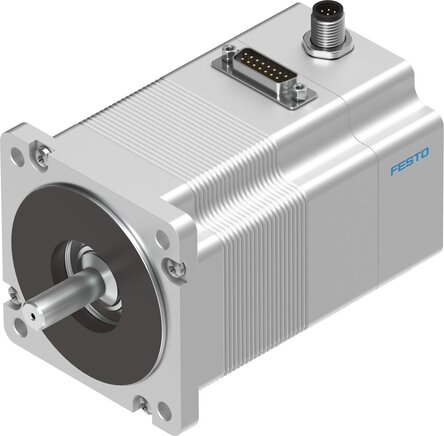

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| ambient temperature [°C] | -10 to 50 |
| Bearing temperature [°C] | -20 to 70 |
| Relative humidity | 0 - 85 % |
| Complies to standard | IEC 60034 |
| Insulation protection class | B |
| Heat class to EN 60034-1 | B |
| Measurement class according to DIN 60034-1 | S1 |
| Protection category | IP54 |
| Electrical connection technology | Plug |
| Material information | RoHs compliant |
| Corrosion resistant class KBK | 1 - low corrosion stress |
| LABS (PWIS) conformity |
RCM mark, c UL us - Recognized (OL) |
| CE certificate (see declaration of conformity) | to EU EMC directive |
| Nominal operating voltage DC [V] | 48 |
| UKCA marking (see declaration of conformity) [Nm] | 2,50 |
| Max. speed [1/min] | 2.130 |
| Step angle at full step [deg] | 1,8 |
| Step angle tolerance | ±5 % |
| Nominal current motor [A] | 9,5 |
| Voltage constant phase [mVmin] | 19,0 |
| Winding resistance phase [Ohm] | 0,10 |
| Winding inductivity phase [mH] | 0,45 |
| Mass inertia Rotor [kg/cm²] | 1,000 |
| Phase winding inductance [kg/cm²] | 1,000 |
| Permitted axial shaft loading [N] | 65 |
| Permitted radial shaft loading [N] | 200 |
| Holding torque brake [Nm] | 2,0 |
| Rotor position transducer | Incremental encoder |
| Rotor position transducer interface | RS422 TTL AB channel + null index |
| Rotor position transducer measurement principle | Visual |
Further information:
| {{ $t('shop.all.gewicht') }} | 2,1 kg / pcs |
| {{ $t('shop.all.gtin') }} | 4052568231453 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 85015100 |
| {{ $t('shop.all.hersteller') }} | Festo |
Figure
