Data sheet

QSML-M3-2 (133030) Push-in L-fitting
{{ $t('shop.all.artikelnummer') }}:
OT-FESTO035949

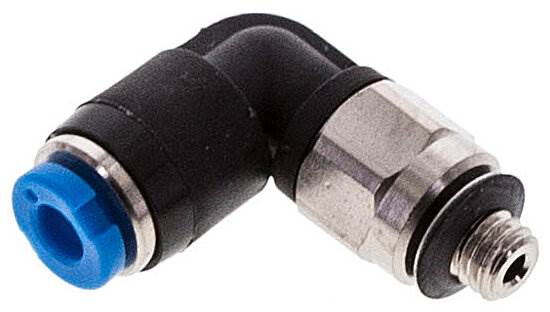

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
size Mini
Nominal width [mm] 0,8
Seal type on stud gasket
installation position arbitrary
Packing size 10
Construction set up Push-pull principle
Operating pressure complete temperature range [bar] -0.95 to 6
Betriebsdruck kompletter Temperaturbereich/MPA [bar] -0.95 to 14
Betriebsdruck kompletter Temperaturbereich/BAR see Certificate
Betriebsdruck kompletter Temperaturbereich/PSI Compressed air to ISO 8573-1:2010 [7:-:-]
Temperaturabhängiger Betriebsdruck/MPA Oiled operation possible
Temperaturabhängiger Betriebsdruck/BAR 1 - low corrosion stress
Temperaturabhängiger Betriebsdruck/PSI [°C] -10 to 80
Information about operating and control medium Male thread M3
Pneumatic connection 2 For hose exterior diameter 2 mm
LABS (PWIS) conformity blue
Material information RoHs compliant
Housing material PBT
Sleeve material POM
Tube seal, hose seal material NBR
Hose clamping segment material High-alloyed stainless steels
Nominal tightening torque [Nm] 0,48
Tolerance to nominal tightening torque ± 55 %
Further information:
{{ $t('shop.all.gewicht') }} 1,5 g / pcs
{{ $t('shop.all.gtin') }} 4052568029135
{{ $t('shop.display.artikel.verpackungseinheit') }} 10 pcs
{{ $t('shop.display.artikel.zollwarennummer') }} 74122000
{{ $t('shop.all.hersteller') }} Festo
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number OT-FESTO035949.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 08.12.2025
