Data sheet
Hard metal burr 12mm, ZYAS - shape A - cylinder with spur teething ring
{{ $t('shop.all.artikelnummer') }}:
FS ZYAS 12X25

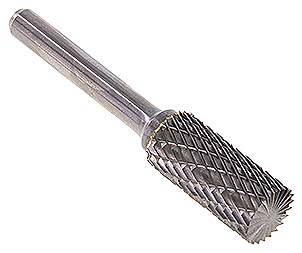

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Description:
High-quality carbide burrs with cross serration (KVZ 4) for deburring, contour machining, weld seam machining, surface finishing, fettling of high-alloy, rust-, acid- and heat-resistant steels, cast iron and plastics. Recommended cutting speed 300 m/min
Recommended cutting speed (V):
Steel, stainless steel & hard non-ferrous metals: 250 - 350 m/min, soft non-ferrous metals & cast iron: 600 - 900 m/min, plastics: 500 - 1100 m/min (rule of thumb: revolutions = V x 318 / head diameter)
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Version | ZYAS - shape A - cylinder with spur teething ring |
| Head diameter [mm] | 12 |
| Head length [mm] | 25 |
| recommended revolutions (steel, stainless steel & hard non-ferrous metals) [1/min] | 7000 - 9000 |
| recommended revolutions (soft non-ferrous metals & cast iron) [1/min] | 16000 - 24000 |
| recommended revolutions (plastic) [1/min] | 13000 - 29000 |
| Total length [mm] | 65 |
| Shaft diameter [mm] | 6 |
Further information:
| {{ $t('shop.all.gewicht') }} | 55 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571310035 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 82077037 |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number FS ZYAS 12X25.
