Data sheet
Coupling plug (NW5) 9 (3/8")mm hose, red, octagonal SW10
{{ $t('shop.all.artikelnummer') }}:
KSS 9 NW5-ROC

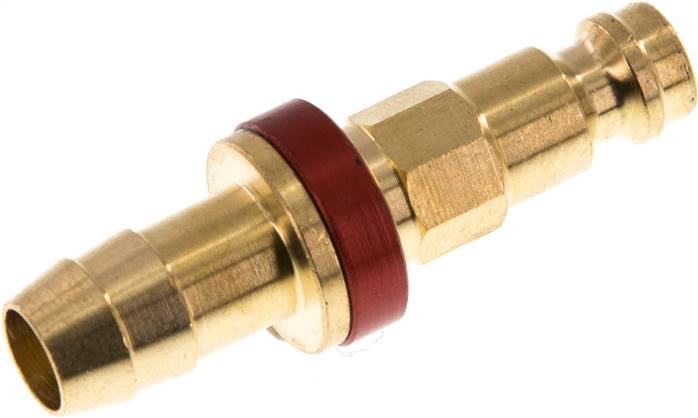

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: brass or nickel-plated brass, sliding sleeve: anodized aluminium, seals: NBR
Temperature range:
-20 to +100 °C
Operating pressure:
-0,95 to 35 bar
Flow*:
550 l/min
Compatible with**:
Rectus (21, 90)
Note:
Coded coupling plugs also fit in uncoded coupling sockets
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | Brass |
| Version | red, octagonal SW10 |
| Hose diameter (inner) [mm] | 9 (3/8") |
Further information:
| {{ $t('shop.all.gewicht') }} | 19 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571454951 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84812090 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number KSS 9 NW5-ROC.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 13.12.2025
