Data sheet
angle welding screw connections 10 L (M16x1,5), 1.4571
{{ $t('shop.all.artikelnummer') }}:
WAS 10 L ES

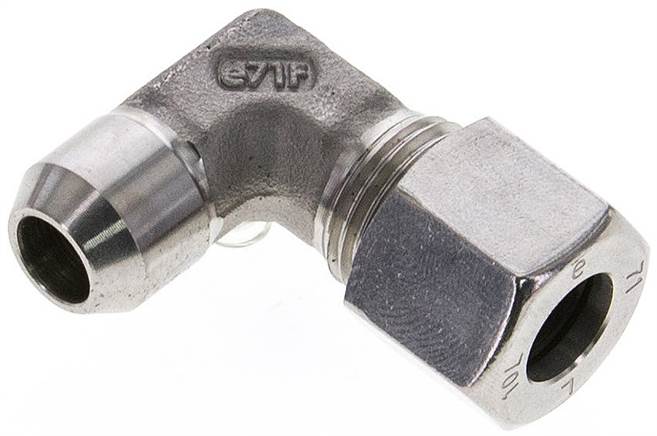

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | 1.4571 |
| Model series | light model series |
| Pipe diameter (outer) | 10 L (M16x1,5) |
| Welding socket diameter (outer) [mm] | 14 |
| Weld-on socket wall thickness [mm] | 3,0 |
| Operating pressure [bar] | 315 |
| Temperature range [°C] | -60 to +400 |
Further information:
| {{ $t('shop.all.gewicht') }} | 55 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571736910 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 73072290 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number WAS 10 L ES.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 13.12.2025
