Data sheet
Adjustable L-cutting ring screw connection M 20x1,5-14 S (M22x1,5), Zinc plated steel
{{ $t('shop.all.artikelnummer') }}:
EL 14 SM

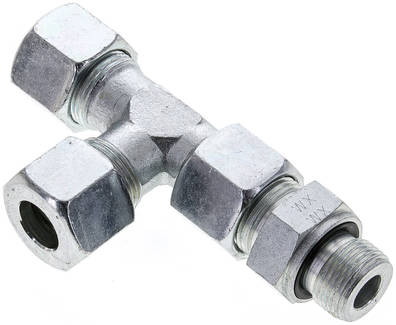

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | Zinc plated steel |
| Model series | heavy model series |
| Pipe diameter (outer) | 14 S (M22x1,5) |
| Screw-in thread | M 20x1,5 |
| Operating pressure [bar] | 630 |
| Temperature range [°C] | -35 to +100 |
Further information:
| {{ $t('shop.all.gewicht') }} | 380 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571281397 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 73079910 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
Drawing:
Drawing: Adjustable L-screw-in fitting
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number EL 14 SM.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
