Data sheet
Adjustable T-cutting ring screw connection G 1-1/4"-35 L (M45x2), Zinc plated steel
{{ $t('shop.all.artikelnummer') }}:
ET 35 LR

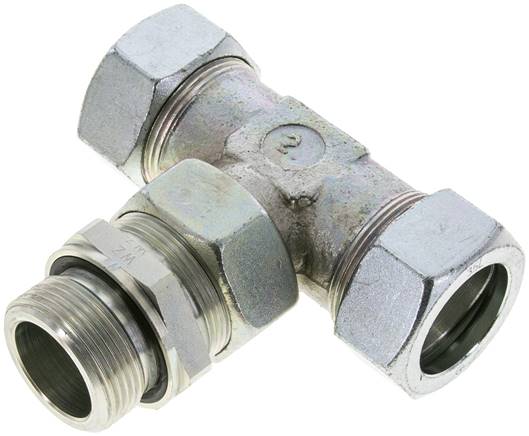

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | Zinc plated steel |
| Model series | light model series |
| Pipe diameter (outer) | 35 L (M45x2) |
| Screw-in thread | G 1-1/4" |
| Operating pressure [bar] | 160 |
| Temperature range [°C] | -35 to +100 |
Further information:
| {{ $t('shop.all.gewicht') }} | 1,3 kg / pcs |
| {{ $t('shop.all.gtin') }} | 4050571285258 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 73079910 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
Drawing:
Drawing: Adjustable T-screw-in fitting
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number ET 35 LR.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 13.12.2025
