Data sheet
KFE ball valve G 1/2" with nozzle, nickel-plated brass
{{ $t('shop.all.artikelnummer') }}:
KH 12 KFE

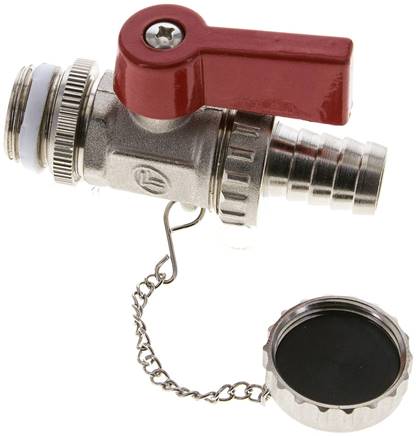

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Description:
Boiler filling and draining ball valves for filling heating systems
Materials:
Body: nickel-plated brass, ball: hard chromium plated brass, seal: PTFE / NBR
Temperature range:
-10 to +120 °C
Media:
Water (no steam), neutral, non-aggressive, non-toxic liquid media
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| G | G 1/2" |
| Hose diameter (inner) [mm] | 13 (1/2") |
| DN [mm] | 10 |
| L [mm] | 74 |
| PN [bar] | 0 - 10 |
| E [mm] | 12 |
| R [mm] | 37 |
Further information:
| {{ $t('shop.all.gewicht') }} | 170 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571408893 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84818081 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
Drawing:
Drawing: KFE ball valve
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number KH 12 KFE.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 08.12.2025
