Data sheet
GK hose coupling,25 (1")mm hose, Stainless steel
{{ $t('shop.all.artikelnummer') }}:
GSK 25 ES

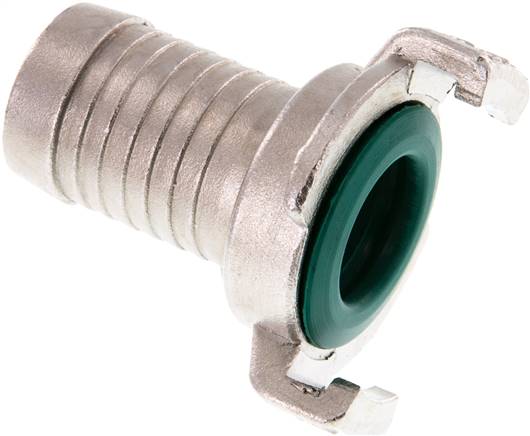

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Bodies: Brass or stainless steel 1.4408, seals: NBR, (Stainless steel: FKM)
Temperature range:
0°C to max. +80°C (Stainless steel: -20°C to max. +200°C)
Operating pressure:
-0,95 to 25 bar
Media:
Water, air, bases, oil and drinking water (only brass type with KTW)
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | Stainless steel |
| Hose diameter (inner) [mm] | 25 (1") |
| Replacement seals | GKOR ES |
| Temperature range [°C] | -20 to +200 |
Further information:
| {{ $t('shop.all.gewicht') }} | 105 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571164874 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 73071990 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number GSK 25 ES.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 08.12.2025
