Data sheet
DAMT-V1-40-A (2214899) Trunnion mounting ki
{{ $t('shop.all.artikelnummer') }}:
OT-FESTO039434

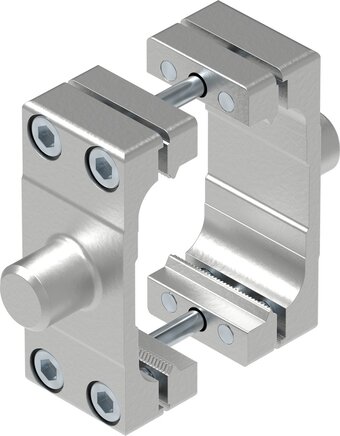

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| size | 40 |
| Based on standard | ISO 15552 (to date also VDMA 24652, ISO 6431, NF E49 003.1, UNI 10290) |
| Corrosion resistant class KBK | 1 - low corrosion stress |
| LABS (PWIS) conformity [°C] | -40 to 150 |
| Material information |
Copper and PTFE-free, RoHs compliant |
| Material information | Zinc plated steel |
| Swivel taps material | Zinc plated steel |
| Clamping piece material | Zinc plated steel |
| Rod material | High-alloyed stainless steels |
Further information:
| {{ $t('shop.all.gewicht') }} | 370 g / pcs |
| {{ $t('shop.all.gtin') }} | 4052568109103 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 73269098 |
| {{ $t('shop.all.hersteller') }} | Festo |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number OT-FESTO039434.
