Data sheet

Electrical. steam trap to max. 2,5 m³/min
{{ $t('shop.all.artikelnummer') }}:
BEKOMAT 31 U

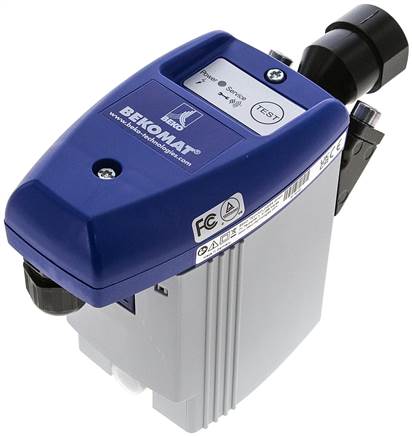

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Advantages:
•No pressure loss while draining,
•Very large condensate outlet, as a result resistant to accumulation of dirt in the condensate,
•Error message can be retrieved via dry contact (5 V DC - 230 V AC, 10 - 1000 mA),
•THE standard for condensate technology
Temperature range:
+1 to +60 °C (for lower temperatures, a heating is available upon request)
Power supply:
230 V AC (type BEKOMAT 31 U and BEKOMAT 32 U: 95-240 V AC/100-125 V DC), on request, other voltages
Protection class:
IP 65 (Type BEKOMAT 31 U and BEKOMAT 32 U: IP 67)
Operating pressure:
0,8 to 16 bar
Optional:
For oil-free condensate, use -CO
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Condensate Contains oil / oil free
max. Compressor supply amount* [m³/min] 2,5
max. Dryer performance [m³/min] 5
Condensate inflow (female thread) G 1/2"
Depth [mm] 164
Width [mm] 65
Height *** [mm] 118 (86)
Wear part set BEKOMAT 31 U VERSCH
Further information:
{{ $t('shop.all.gewicht') }} 1,1 kg / pcs
{{ $t('shop.all.gtin') }} 4050571223045
{{ $t('shop.display.artikel.zollwarennummer') }} 84219910
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
{{ $t('shop.all.hersteller') }} Beko
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number BEKOMAT 31 U.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 08.12.2025
