Data sheet

Angled poppet valve ,Repair set, Eco-Line
{{ $t('shop.all.artikelnummer') }}:
U 212 ES2A E REP

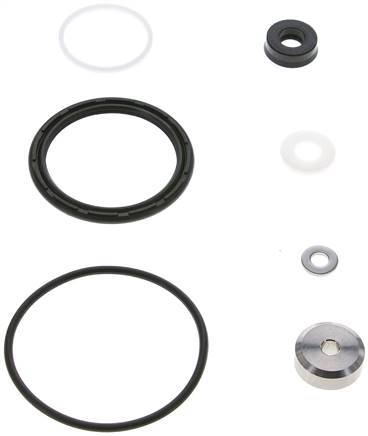

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Bodies: 1.4408, seals: PTFE/FKM
Temperature range:
-10 to +180 °C (ambience: -10 to +60 °C)
Media:
compressed air, neutral gases, water, oils, weak acids and alkalis
Switching position:
Zero position closed (NC)
Flow direction:
closing with media flow (not recommended for liquids with high flow velocity)
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Version Repair set
Further information:
{{ $t('shop.all.gewicht') }} 22 g / pcs
{{ $t('shop.all.gtin') }} 4050571711757
{{ $t('shop.display.artikel.zollwarennummer') }} 40169300
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
{{ $t('shop.all.hersteller') }} EMC
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number U 212 ES2A E REP.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 13.12.2025
