Data sheet
NPQH-L-G14-Q12-P10 (578286) Push-in L-fitting
{{ $t('shop.all.artikelnummer') }}:
OT-FESTO040042

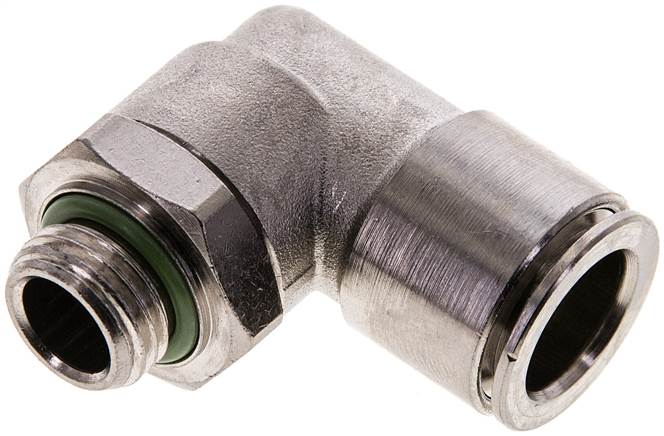

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| size | Standard |
| installation position | arbitrary |
| Packing size | 10 |
| Operating pressure complete temperature range [bar] | -0.95 to 20 |
| Certified awarding point | NSF C0523185 |
| Betriebsdruck kompletter Temperaturbereich/MPA |
Compressed air to ISO 8573-1:2010 [7:-:-], Water according to manufacturer declaration at www.festo.com |
| Betriebsdruck kompletter Temperaturbereich/BAR | Oiled operation possible |
| Betriebsdruck kompletter Temperaturbereich/PSI | 3 - severe corrosion stress |
| Food compatibility |
NSF/ANSI 169, siehe Konformitätserklärung |
| ambient temperature [°C] | 0 to 150 |
| Information about operating and control medium | Male thread G1/4 |
| Material information | RoHs compliant |
| LABS (PWIS) conformity | Nickel-plated brass |
| Nominal width [mm] | 8,50 |
| Seal type on stud | gasket |
| Construction set up | Push-pull principle |
| Max. tightening torque [Nm] | 15,0 |
| Pneumatic connection 2 | For hose exterior diameter 12 mm |
| Material information | FPM |
| Sleeve material | Nickel-plated brass |
| Tube seal, hose seal material | FPM |
| Hose clamping segment material | High-alloyed stainless steels |
Further information:
| {{ $t('shop.all.gewicht') }} | 60 g / pcs |
| {{ $t('shop.all.gtin') }} | 4052568059897 |
| {{ $t('shop.display.artikel.verpackungseinheit') }} | 10 pcs |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 74122000 |
| {{ $t('shop.all.hersteller') }} | Festo |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number OT-FESTO040042.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 13.12.2025
