Data sheet

Pressure switch 0,1 to 1 bar (Closer (NO)), G 1/4" (AG)
{{ $t('shop.all.artikelnummer') }}:
DRSS 1

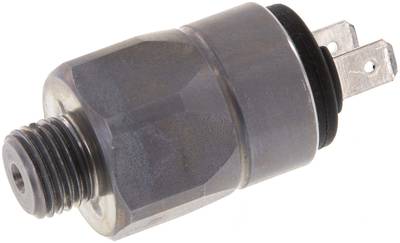

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: zinc plated steel (vacuum switch: brass), diaphragm: NBR (vacuum switch: FKM), DRSS / DRSO 150: piston 1.4305 with NBR seal
Temperature range:
-30°C to max. +100°C (Vacuum switch -5°C to max. +120°C)
Switch-back difference (hysteresis)
5 - 15 % of the value that has been set
Protection class:
IP 65 (clamps IP 00)
Electrical connection:
Screw terminals (0.1 - 1 bar & NO contact 1 - 10 bar: Blade connector 6.3x0.8 (AMP 6.3x0.8))
Media:
Hydraulic oil, machine oil, heating oil, air, (conditionally also suitable for water)
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Version Pressure switches
Switch type NO contact
Setting range [bar] 0,1 - 1
Thread G 1/4" (male thread)
Material Zinc plated steel
Safe at overpressure up to [bar] 300
Switch capacity 42 V / 100 VA
Operating voltage 0 - 42 V (AC/DC)
Electrical connection Blade connectors 6.3x0.8 (AMP 6.3x0.8) (flat pin)
Safety caps DRSS SCHUTZKAPPE
Temperature range [°C] -30 to +100
Further information:
{{ $t('shop.all.gewicht') }} 70 g / pcs
{{ $t('shop.all.gtin') }} 4050571273200
{{ $t('shop.display.artikel.zollwarennummer') }} 90268080
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number DRSS 1.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 08.12.2025
