Data sheet
cover plate, Stainless steel, Size 6, light model series
{{ $t('shop.all.artikelnummer') }}:
GR 6 LDP ES

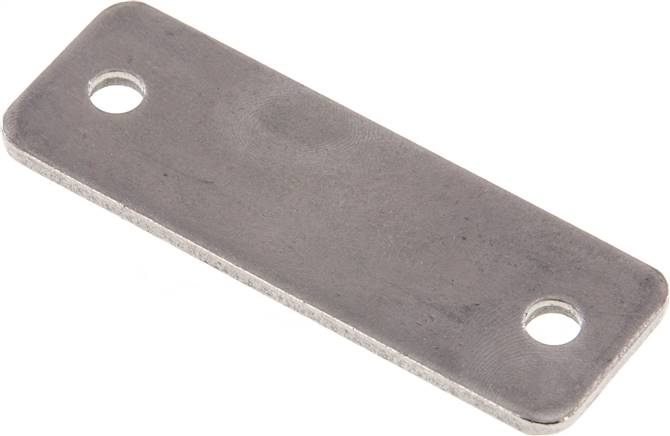

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | Stainless steel |
| Version | cover plate |
| for size | Size 6, light model series |
| suitable screws (pipe clamp without cover plate) 2 screws are required for each pipe clamp* | 912-M6X60 ES |
| suitable screws (pipe clamp with cover plate) 2 screws are required for each pipe clamp* | 931-M6X70 ES |
Further information:
| {{ $t('shop.all.gewicht') }} | 60 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571339708 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 73269098 |
| {{ $t('shop.all.hersteller') }} | Hydac |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number GR 6 LDP ES.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 13.12.2025
