Data sheet
3/2-way (NC/NO) Mushroom button-valve, black, G 1/4"
{{ $t('shop.all.artikelnummer') }}:
M 322-S6-SCHWARZ

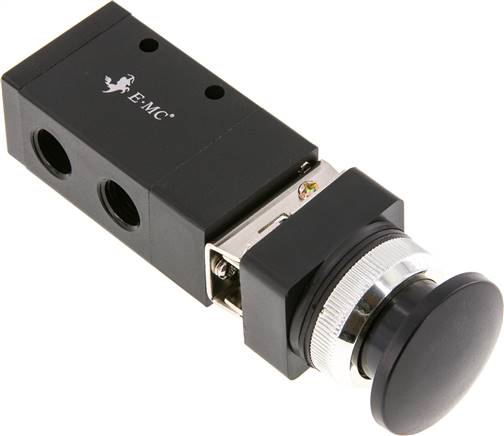

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body and slider: aluminium, seals: NBR
Temperature range:
-5 to +60 °C
Operating pressure:
0 to 8 bar
Flow:
800 l/min
Media:
oiled and unoiled filtered compressed air
Pressure input:
Possible on every connection
Switch panel borehole:
Ø 30,5 mm
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| function | 3/2-way (NC/NO) |
| Actuation | Mushroom button |
| colour | black |
| Thread | G 1/4" |
| Thread exhaust air | G 1/4" |
Further information:
| {{ $t('shop.all.gewicht') }} | 210 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571478476 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84812090 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
| {{ $t('shop.all.hersteller') }} | EMC |
Figure
Drawing:
Drawing: 3/2-way and 5/2-way valve
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number M 322-S6-SCHWARZ.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 08.12.2025
