Data sheet
3/2-way pneumatic valve, G 1/4", open (NO)
{{ $t('shop.all.artikelnummer') }}:
RV 3231-08H A

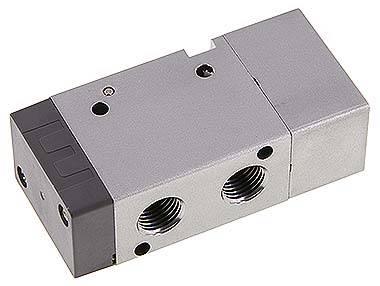

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body and slider: aluminium, seals: NBR, pilot: polyamide
Temperature range:
-5 to +60 °C
Operating pressure:
1,5 to 8 bar
Control pressure:
2 to 8 bar
Media:
oiled and unoiled filtered compressed air
Service life:
min. 40 million switching cycles
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| function | open (NO)* |
| Thread G1 (2x) | G 1/4" |
| Thread exhaust air G1 (1x) | G 1/4" |
| Thread control connection G2 | G 1/8" |
| Nominal width [mm] | 5,6 |
| flow [l/min] | 1150 |
| A [mm] | 84,6 |
| B [mm] | 40 |
| C [mm] | 27 |
| D [mm] | 10,5 |
| E [mm] | 21,6 |
| F [mm] | 30 |
| H1 [mm] | 4,3 |
| H2 [mm] | 4,3 |
| J [mm] | 20 |
| K [mm] | 19,1 |
| L [mm] | 35 |
| M [mm] | 24,6 |
| N [mm] | 24 |
| O [mm] | 36,6 |
| P [mm] | 0 |
| W [mm] | 0 |
Further information:
| {{ $t('shop.all.gewicht') }} | 210 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571715038 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84812090 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
| {{ $t('shop.all.hersteller') }} | EMC |
Figure
Drawing:
Tekening: 3/2-weg pneumatisch ventiel
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number RV 3231-08H A.
