Data sheet
5/2-way solenoid valve, G 1/4", spring return, 230 V AC
{{ $t('shop.all.artikelnummer') }}:
RV 5231-08-230V

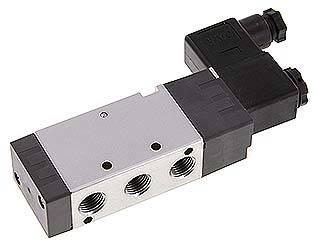

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body and slider: aluminium, seals: NBR, pilot: polyamide
Temperature range:
-5 to +60 °C
Operating pressure:
1,5 to 8 bar
Media:
oiled and unoiled filtered compressed air
Switching time (at 5 bar):
<50 ms, max. 5 switching cycles/sec (5/3-way: max. 3 switching cycles/sec)
Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages
Voltage tolerance:
± 10 %
Protection class:
IP 65
Service life:
min. 40 million switching cycles
Structural shape solenoid coil:
T1 (plug size 1)
Information:
The coil and plug are enclosed as loose parts.
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Control voltage | 230 V AC |
| Switching | 5/2-way |
| function | spring return* |
| Thread G1 (3x) | G 1/4" |
| Thread exhaust air G2 (2x) | G 1/4" |
| Nominal width [mm] | 5,6 |
| flow [l/min] | 1150 |
| Power consumption (AC) [VA] | 4 |
| Spare solenoid coil | MAG T1 230V |
| A [mm] | 139,3 |
| B [mm] | 40 |
| C [mm] | 27 |
| D [mm] | 13,5 |
| E [mm] | 32,1 |
| F [mm] | 24 |
| H1 [mm] | 4,3 |
| H2 [mm] | 4,3 |
| J [mm] | 20 |
| K [mm] | 19,1 |
| L [mm] | 50 |
| M [mm] | 21,6 |
| N [mm] | 45 |
| O [mm] | 33,1 |
| P [mm] | 0 |
| S [mm] | 24 |
| T [mm] | 44,1 |
| U [mm] | 70 |
| V [mm] | 40,5 |
| W [mm] | 0 |
Further information:
| {{ $t('shop.all.gewicht') }} | 300 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571715854 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84812090 |
| {{ $t('shop.all.hersteller') }} | EMC |
Figure
Drawing:
Zeichnung: 5/2-Wege und 5/3-Wege Magnetventil
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number RV 5231-08-230V.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 13.12.2025
