Data sheet

5/3-way solenoid valve, G 1/8", Centre position closed, 24 V AC
{{ $t('shop.all.artikelnummer') }}:
RV 5312-06C-24VAC

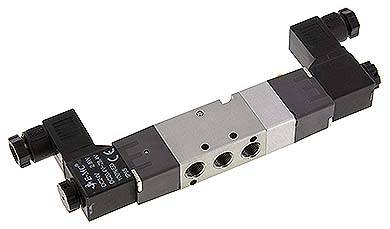

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body and slider: aluminium, seals: NBR, pilot: polyamide
Temperature range:
-5 to +60 °C
Operating pressure:
1,5 to 8 bar
Media:
oiled and unoiled filtered compressed air
Switching time (at 5 bar):
<50 ms, max. 5 switching cycles/sec (5/3-way: max. 3 switching cycles/sec)
Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages
Voltage tolerance:
± 10 %
Protection class:
IP 65
Service life:
min. 40 million switching cycles
Structural shape solenoid coil:
S (plug size 0)
Information:
The coil and plug are enclosed as loose parts.
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Control voltage 24 V AC
Switching 5/3-way
function Centre position closed
Thread G1 (3x) G 1/8"
Thread exhaust air G2 (2x) G 1/8"
Nominal width [mm] 3,4
flow [l/min] 450
Power consumption (AC) [VA] 3
Spare solenoid coil MAG S 24VAC
A [mm] 158,2
B [mm] 27
C [mm] 18
D [mm] 9,5
E [mm] 64,6
F [mm] 14
H1 [mm] 3,3
H2 [mm] 3,3
J [mm] 13
K [mm] 56,6
L [mm] 30
M [mm] 57,6
N [mm] 28
O [mm] 63,6
P [mm] 3
S [mm] 16
T [mm] 71,6
U [mm] 55,2
V [mm] 33,9
W [mm] 2
Further information:
{{ $t('shop.all.gewicht') }} 210 g / pcs
{{ $t('shop.all.gtin') }} 4050571716158
{{ $t('shop.display.artikel.zollwarennummer') }} 84812090
{{ $t('shop.all.hersteller') }} EMC
Figure
Drawing:
Drawing: 5/3-way solenoid valve
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number RV 5312-06C-24VAC.
