Data sheet

Brass ball valve, Eco-Line, R 1-1/4" / Rp 1-1/4", 0 to 25bar
{{ $t('shop.all.artikelnummer') }}:
KH 114 B IA E-KN

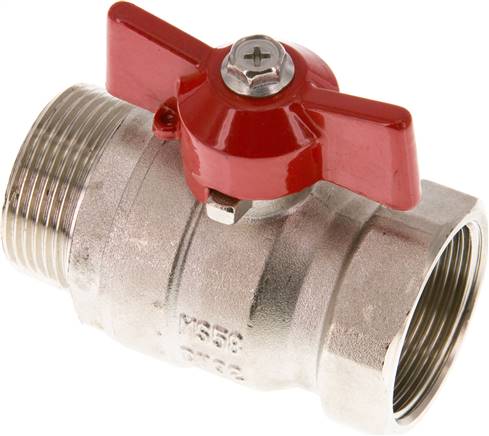

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: nickel-plated brass, ball: chrome-plated brass, seals: PTFE / NBR
Temperature range:
-20 to +95 °C
Media:
Compressed air, water, oils
Optional:
with butterfly handle -KN (1/4" - 1-1/4")
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Version Butterfly handle
G1 (male thread) R 1-1/4"
G2 (female thread) Rp 1-1/4"
DN [mm] 29
L [mm] 87
PN [bar] 0 - 25
H [mm] 67
R [mm] 142
Further information:
{{ $t('shop.all.gewicht') }} 600 g / pcs
{{ $t('shop.all.gtin') }} 4050571407285
{{ $t('shop.display.artikel.zollwarennummer') }} 84818081
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
Figure
Drawing:
Drawing: Screw-in ball valve, 2-part, full bore, short design
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number KH 114 B IA E-KN.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 13.12.2025
