Data sheet

ACE clamping flange, M 25x1,5, side mounting
{{ $t('shop.all.artikelnummer') }}:
MB 25

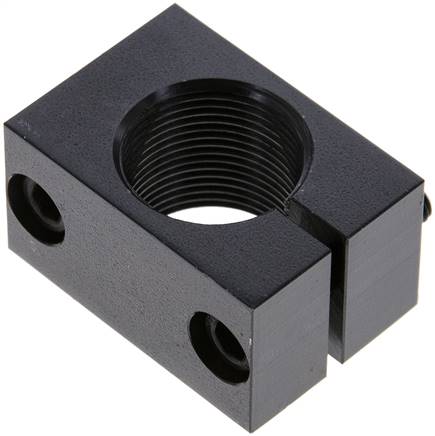

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Note:
The clamping flanges ...SC2 must be countered with the nuts on the shock absorbers, all other flanges are clamped with screws.
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Version side mounting
Suitable for shock absorbers MA 600..., MA 900..., MC 600..., SC 650 EUM0-4, SC 925...
Thread B M 25x1,5
A [mm] 32
C [mm] 25
D M 6
E [mm] 34
F [mm] 46
G [mm] 6,0
Further information:
{{ $t('shop.all.gewicht') }} 185 g / pcs
{{ $t('shop.all.gtin') }} 4050571481056
{{ $t('shop.display.artikel.zollwarennummer') }} 84879059
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
{{ $t('shop.all.hersteller') }} ACE
Figure
Drawing:
Zeichnung: Klemmflansch für Stoßdämpfer, seitliche Befestigung
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number MB 25.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 08.12.2025
