Data sheet

Needle shut-off valve, stainless steel, G 1/4", PN 300 (ECO)
{{ $t('shop.all.artikelnummer') }}:
NADEL 14 ES E

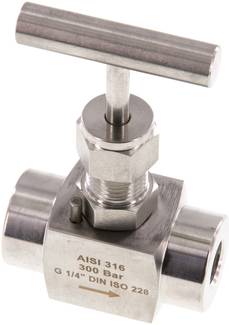

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: 1.4401, handle: 1.4301, seal: PTFE (on the spindle)
Temperature range:
-20 to +200 °C
Optional:
Certificate 3.1
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Thread G 1/4"
DN [mm] 3,5
L [mm] 56
PN [bar] 0 - 300
H [mm] 80
Kv value* [l/min] 11,5
Further information:
{{ $t('shop.all.gewicht') }} 370 g / pcs
{{ $t('shop.all.gtin') }} 4050571520670
{{ $t('shop.display.artikel.zollwarennummer') }} 84812090
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number NADEL 14 ES E.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 13.12.2025
