Data sheet

TÜV-safety valve G 3/8" (DN10), 2,70 bar, Brass
{{ $t('shop.all.artikelnummer') }}:
SV 38 10-2,7 MS

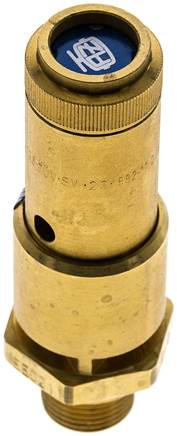

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: brass, 1.4571 or 1.4401, seal: FKM
Temperature range:
-25 to +180 °C
Media:
Compressed air and other non-toxic non-inflammable gases, blown-off freely
Note:
These valves have been type approved and can only be supplied non-adjustable.
Optional:
NPT thread -NPT, fixed pressure between 0,2 and 50 bar, TÜV adjustment certificate
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Material Brass
Thread G 3/8"
reaction pressure [bar] 2,70
Blow-off capacity* [m³/h] 127,3
H [mm] 75
h [mm] 12
SW [mm] 27
Component identification markings TÜV.SV...-882.10.D/G.0.61 CE0036 2,7 bar
Further information:
{{ $t('shop.all.gewicht') }} 190 g / pcs
{{ $t('shop.all.gtin') }} 4050571670047
{{ $t('shop.display.artikel.zollwarennummer') }} 84814090
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
Figure
Drawing:
Drawing: Safety valve
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number SV 38 10-2,7 MS.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
