Data sheet
Safety coupling socket (NW7,2) 10mm hose, Eco
{{ $t('shop.all.artikelnummer') }}:
KDSSI 10 NW7 E

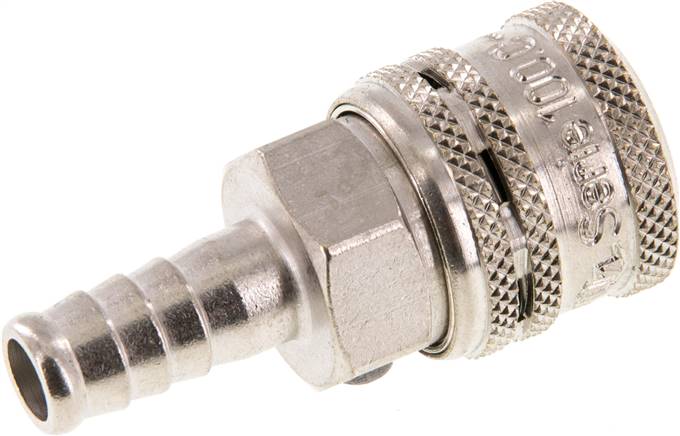

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: nickel-plated brass, nickel-plated steel, seal: NBR
Temperature range:
-20 to +100 °C
Operating pressure:
0 - 12 bar (Eco: up to max. 8* bar)
Flow***:
1800 l/min (Eco: 1100 l/min)
Function:
The coupling occurs as for standard couplings, by inserting the push in nipple into the coupling socket. Uncoupling occurs in two steps: By pushing back the unlocking sleeve, the coupling socket closes and ventilates the coupling plug while this is still held in the coupling socket. The plug is then released by pulling the unlocking sleeve. The dangerous recoil effect is thus prevented.
Advantages:
•no risk of injury when releasing the coupling as the plug does not jump out,
•easy to use (release like standard couplings)
•easy to use (release like standard couplings)
Recommendation:
Use coupling plugs made of hardened steel!
Compatible with**:
Rectus (25, 26, 1600, 1625), TEMA (1600), CEJN (320), JWL (520, 530, 560), Legris (25, 26), Parker (PE, PEF), Prevost (E ... 07), Festo (KD4 / KS4 / NPHS), IMI-Norgren (238), Aventics (CP1-NW 7 / 7.8) and many other German brands
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Hose diameter (inner) [mm] | 10 |
| Version | Eco |
| actual nominal width [mm] | 7,2 |
| Operating pressure [bar] | 0 - 8 |
Further information:
| {{ $t('shop.all.gewicht') }} | 95 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571402044 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84812090 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number KDSSI 10 NW7 E.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 13.12.2025
