Data sheet
Elbow push-in fitting G 3/8"-10mm, IQS-FDA
{{ $t('shop.all.artikelnummer') }}:
IQSL 3810 G FDA

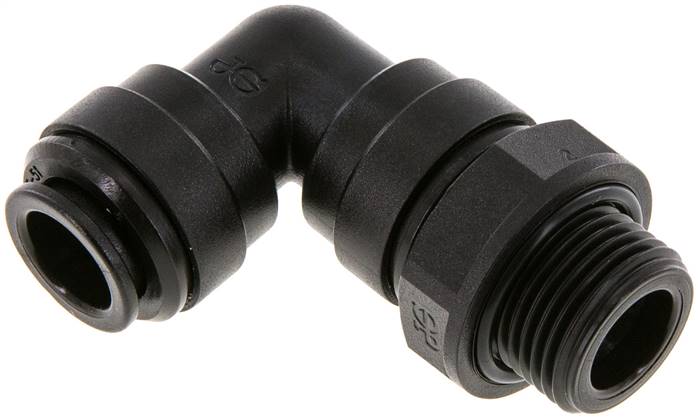

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body and sleeve: POM (FDA approved), holding claw: Stainless steel, seals: NBR (FDA approved)
Temperature range:
-20 to +70 °C
Operating pressure:
-0,95 to 16 bar (Ø 12 mm: max. 10 bar)
Media:
oiled and unoiled compressed air, water, liquid foodstuffs, non-hazardous gases and liquids, mild chemicals
Approvals:
FDA, NSF, WRC, ACS and KTW
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| G | G 3/8" |
| D [mm] | 10 |
| Operating pressure [bar] | -0,95 to 16 |
Further information:
| {{ $t('shop.all.gewicht') }} | 16 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571379209 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 39174000 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number IQSL 3810 G FDA.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 08.12.2025
