Data sheet
Coupling socket (NW7,2) 9 (3/8")mm hose, brown, triangle 12.5 mm
{{ $t('shop.all.artikelnummer') }}:
KDS 9 NW7 ST-BRC

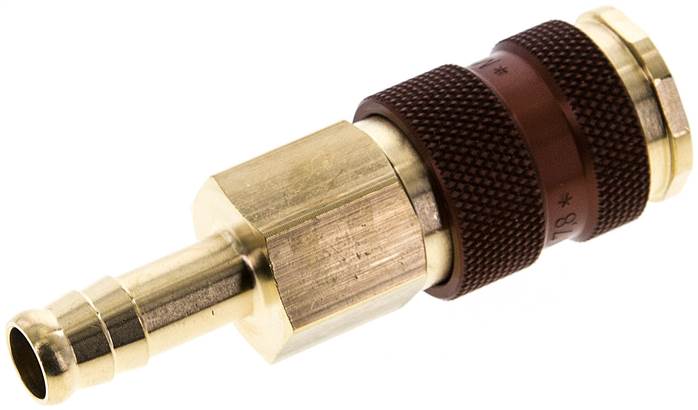

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: brass, sliding sleeve: anodized aluminium, seals: NBR
Temperature range:
-20 to +100 °C
Operating pressure:
-0,95 to 35 bar
Flow*:
1800 l/min
Compatible with**:
Rectus (25, 26, 1600, 1625) and many other German brands
Note:
Uncoded coupling plugs also fit in coded coupling sockets
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Version | brown, triangle 12.5 mm |
| Hose diameter (inner) [mm] | 9 (3/8") |
Further information:
| {{ $t('shop.all.gewicht') }} | 80 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571400798 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84812090 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number KDS 9 NW7 ST-BRC.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 13.12.2025
