Data sheet
1-Ear hose clip 5,1 to 6,1mm, stainless steel
{{ $t('shop.all.artikelnummer') }}:
SSO 6,1-1 ES

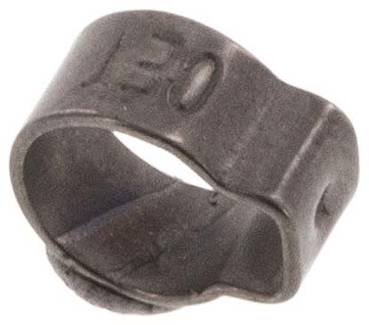

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
1.4307 (W4), insert ring: 1.4310
Suitable:
One-ear clamps are mounted by squeezing them closed with clamping pliers and can only be removed by squeezing them open with a diagonal cutter. The insert ring ensures an absolutely secure all-around setting and is favoured for the assembly of soft and sensitive, or very stiff, hoses. The clamp cannot be reused.
Advantages:
•Small design,
•“Self-suspended”,
•No protruding thread tongues (no risk of injury),
•Insoluble
•“Self-suspended”,
•No protruding thread tongues (no risk of injury),
•Insoluble
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Version | Standard |
| Diameter clamping range [mm] | 5,1 - 6,1 |
| Tape width [mm] | 4 |
Further information:
| {{ $t('shop.all.gewicht') }} | 0,4 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571643911 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 73269098 |
| {{ $t('shop.all.hersteller') }} | Oetiker |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number SSO 6,1-1 ES.
