Data sheet
1-Ear hose clip 13 to 15mm, stainless steel
{{ $t('shop.all.artikelnummer') }}:
SSO 15-1 ES

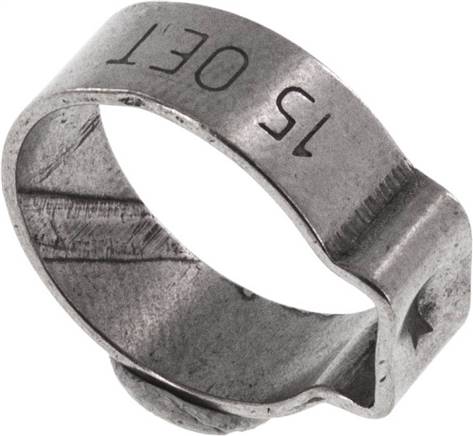

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
1.4307 (W4), insert ring: 1.4310
Suitable:
One-ear clamps are mounted by squeezing them closed with clamping pliers and can only be removed by squeezing them open with a diagonal cutter. The insert ring ensures an absolutely secure all-around setting and is favoured for the assembly of soft and sensitive, or very stiff, hoses. The clamp cannot be reused.
Advantages:
•Small design,
•“Self-suspended”,
•No protruding thread tongues (no risk of injury),
•Insoluble
•“Self-suspended”,
•No protruding thread tongues (no risk of injury),
•Insoluble
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Version | Standard |
| Diameter clamping range [mm] | 13 - 15 |
| Tape width [mm] | 6 |
Further information:
| {{ $t('shop.all.gewicht') }} | 2,1 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571643713 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 73269098 |
| {{ $t('shop.all.hersteller') }} | Oetiker |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number SSO 15-1 ES.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 08.12.2025
