Data sheet

ISO 15552-Yoke swivel fastening 40 mm, Burnished steel
{{ $t('shop.all.artikelnummer') }}:
TC 40 ST

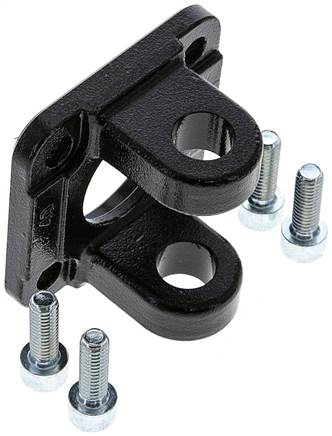

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Scope of delivery:
1 pc swivel fixation, incl. 4 fastening screws
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Material Burnished steel
for piston diameter [mm] 40
A [mm] 52
B [mm] 28
D [mm] 12
L [mm] 160
F [mm] 25
M [mm] 55
N [mm] 38,0
Further information:
{{ $t('shop.all.gewicht') }} 220 g / pcs
{{ $t('shop.all.gtin') }} 4050571689629
{{ $t('shop.display.artikel.zollwarennummer') }} 73269098
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
Figure
Drawing:
Drawing: Swivel mounting fork
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number TC 40 ST.
