Data sheet
MULTIFIX pressure regulator with integrated pressure gauge, manifold assembly, G 1/4", Multifix 1
{{ $t('shop.all.artikelnummer') }}:
MANOREG RB 14-3

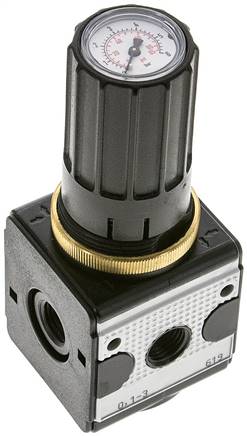

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Version:
Self-relieving pressure regulator
Materials:
Body: die-cast zinc Z410 (model series 4 & 5: aluminium), spring hood: POM, diaphragms and seals: NBR
Temperature range:
-10 to +60 °C
Pressure gauge connection (does not apply to pressure regulators with continuous pressure supply):
G 1/4" (model series 0: G 1/8")
Media:
Oiled and unoiled compressed air, neutral gasses
Advantages:
•Automatic venting in the event of overpressure on the secondary side,
•Easy assembly of individual components using coupling kits within a model series and thread size,
•Hand wheel can be locked by pressing down on it
•Easy assembly of individual components using coupling kits within a model series and thread size,
•Hand wheel can be locked by pressing down on it
Input pressure:
max. 16 bar (model series 0: when using a coupling kit max. 12 bar)
Switch panel thread:
M 36x1,5
ATEX:
Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU
Advantages:
•Pressure gauge integrated in the hand wheel, suitable for installation in switch panels,
•By combining several adjustable nozzles into a block, several compressed air circuits can be supplied with independently regulated pressure from one pressure supply. The compressed air outlet is at the pressure gauge connection or at the female thread G 1/4" fitted opposite (closed).
•By combining several adjustable nozzles into a block, several compressed air circuits can be supplied with independently regulated pressure from one pressure supply. The compressed air outlet is at the pressure gauge connection or at the female thread G 1/4" fitted opposite (closed).
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Model series | Multifix 1 |
| Thread input | G 1/4" |
| Thread at outlet (front) | G 1/4" |
| Thread at outlet (rear) | G 1/4" |
| Pressure regulation range [bar] | 0,1 - 3 |
| Flow** [l/min] | 2250 |
| Pressure gauge display [bar] | 0 - 6 |
| Coupling kit | KP 1 |
| H [mm] | 120,6 |
| H1 [mm] | 94,6 |
| L [mm] | 48 |
Further information:
| {{ $t('shop.all.gewicht') }} | 390 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571480080 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84811099 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number MANOREG RB 14-3.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 08.12.2025
