Screw in pneumatic cylinder pistons 6mm, 5mm stroke
{{ $t('shop.all.artikelnummer') }}:
HB 6/5

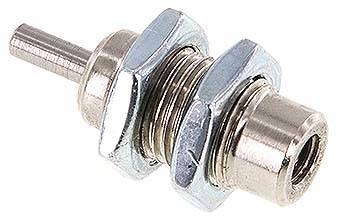

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: Nickel-plated brass, piston rod: stainless steel, seal: NBR
Temperature range:
-20 to +80 °C
Operating pressure:
max. 7 bar
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Piston diameter [mm] | 6 |
| Stroke [mm] | 5 |
| Model of piston rod: | without thread |
| A (fastening thread) | M 10x1 |
| C (compressed air port) | M 5 |
| Spring force when closed [N] | 1,5 |
| Spring force when open [N] | 4 |
| B [mm] | 8,5 |
| E [mm] | 9 |
| F [mm] | 5 |
| G [mm] | 18,5 |
| H [mm] | 9,0 |
| M [mm] | 3 |
| CH [mm] | 14 |
Further information:
| {{ $t('shop.all.gewicht') }} | 12 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571351557 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84123100 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
Drawing:
Drawing: Screw-in cylinder
